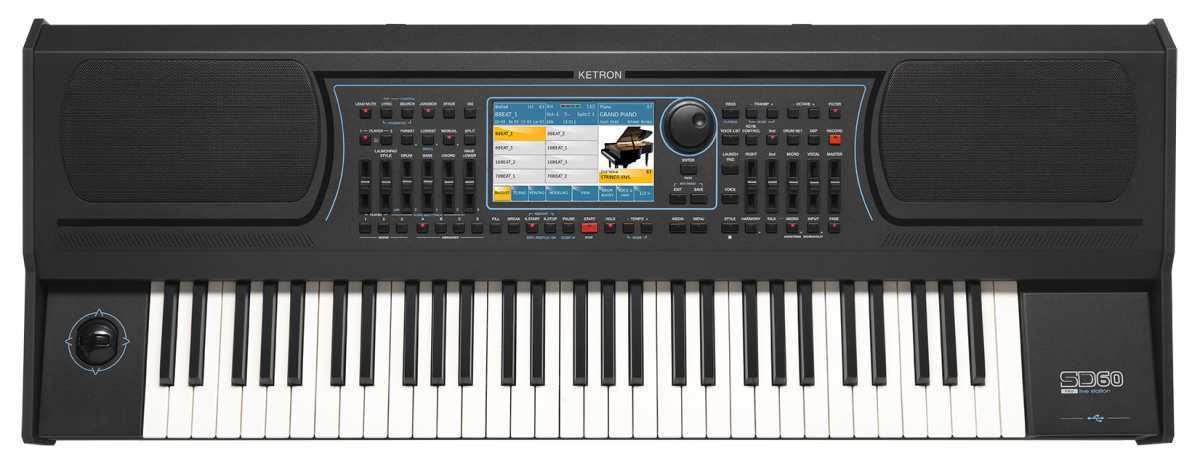

Ketron SD60

61 semi-weighted keys. 4 Velocity Curves. Programmable touch response. Aftertouch. Portamento. Joystick: Pitch. Modulation. Transposer: +/- 24. Octave: +/- 2.

POLYPHONY  128 note. Multitimbral 64 parts.

DISPLAY Lcd color Tft 7. Touch Screen capacitive 800×480 dots. Brightness control.

SOUND & VOICES 672 GM Sounds. 5 Sound Banks. 61 Drum Sets. 368 Preset Voices. 1500 User Voices. 2nd Voice. V-Tone. Advanced Voice Editing. Voice List: 80 Voices programmable and Style assignable. Filter and Resonance live controls.

LIVE DRUM  Up to 100 Stereo Live Drums. Wav streaming with Time stretching and 3 Band stereo Equalizer. Full Arranger structure with ABCD, Fill, Break, Intro-End.

LIVE GUITAR  150 Audio Live Guitars (Folk, Acoustic, Electric, Nylon). Stereo and Mix Version.

GROOVES  530 Grooves with Latin Percussions, Brazilian, individual and full Drums loops.

AUDIO DRUM (GRV) 159 sliced audio Drum Ioops. Full Arranger structure with ABCD, Fill, Break, Intro-End.

ARRANGER   400 styles. 140 Live Styles with Live Drums, Live Guitars and Grooves. Compatibility with User Audio Drum @ from Audya series and SD Series (SD7, SD40, SD80). 4 Arranger ABCD. 4 Fill. 4 Break. 3 Intro. 3 Ending. Auto fill. Fill to Arrange. To End. Reintro. Kry Start. Key Stop. Restart. Pause. Count In. Midi Drum Mixer & Remap. Drum Boost. 4 Voice Variations. Voice to ABCD. Voice List assign to Style. 5 User Tabs. Pianist and Bassist mode. Manual Bass. Bass to Lowest. Bass to Root.

STYLE EDIT Full Pattern creation and Editing. Functions: Record, Copy, Clear, Quantize, Velocity, Octave. User Style section (unlimited disk locations).

LIVE MODELING Style Modeling Library with Live Drums, Grv (Audio Drum Loops), Live Guitars, Grooves, Bass, Piano, Guitar, Orchestral and Synth templates.

LAUNCHPAD Up to 2048 Launchpad projects. 12 pads wth 6 Scenes. 30 internal demos. 3 x Wav simultaneous with Time stretching and Midi synchronization. Functions:  Record, Phase, Song, Single/Loop, Pad control, Harmonic/Melodic mode, Live Efx pad control, Drum kit Looper. Style Import. Full interaction with Style Modeling.

PLAYER Double Player. Files recognized: Wav, Midi, Mp3, Mp4, Avi, Mov, flv, Cdg, Jpg, Txt, Pdf. Functions: Marker. Sync/Next. Autoplay. Lead Mute. GM part. Lyric Off. Cross fade. File Search. Play List. My Folder. Transposer. Time stretching. Metronome Click. Midi Multimix. Song Drum Restyle. Audio and Midi syncronize.

AUDIO MULTITRACK PLAYER 5+1 Audio tracks with separate slider control. Metronome click out.

DJ  Double Audio and Midi player with tempo & Pitch stretching, Pfl, Sync, Tap tempo, Cue, Fx Pad, Backspin, Brake.

JUKE BOX Playlist, My Folders, SFX Special Effects.

PIC & MOVIE Jpg & Mp4, Avi, Mov, Flv, Karaoke background, Movie/PDF to RGB, Pic List, Autoshow.

DVI  Video Monitor Out, Karaoke Lyric/Mirror.

MENU Disk, Midi, Play Modes, Audio Edit, Language, Footswitch, Preferences, Controls, Video, Reg. Set up, Arabic Mode.

MEDIA  Internal Storage: SSD Card 16G. Usb: 3 Host+1 device. External Storage: Removable HD_SATA 2.3_2’5.

PLAY MODES Master Keyboard. Accordion Style and Classic. Organ (with Pedalboard). Guitar mode with Efx (thru Input).

KEYBOARD CONTROL Live Efx Chain editing. Aftertouch, Portamento, Double controls.

REGISTRATIONS 4 Banks x 1024 Regs. Full Panel and function programming. 4 Playbox with 1024 files per folder (including Midifile, Mp3, Wav).

DSP 2 x DSP with 2 separate Reverb units, Chorus, Reverb, Flanger, Phaser, Tremolo, Rotary, Autopan, Echo Delay, Tap Delay, Equalizer, Distorsion, Amp simulator, Compressor, Filter. 64 Insert EFX Chains (10 User programmable).

RECORDING HD Recording: 1 stereo track. Loop. Audio edit with cut, normalize. Midi recording with phrase and song.

USER MEMORY Up to 400 MB free User programmable.

MICRO XLR Input. Gain Control. Volume. Reverb. Micro On/Off Edit. Talk.

VOICETRON 3 Voice Voicetron. Manual, Unison, Midi Mode, Pitch Corrections, Autotune, Harmony Duet & Trio. 10 Voicetron User.

INSTRUCTION MANUAL Html on board.

MIDI  In 1 (Gm), In 2 (Keyb). Out. Thru. Midi Set up: Standard, Computer & Sequencer, Keyboard Right, Accordion, Player, Style.

OUTPUT Left/Right Stereo, Volume Pedal, Sustain pedal, Micro Out.

INPUT Guitar (Instrument) /Micro2.

HEADPHONE Stereo Headphone. Aux separate Out Assign (to Drums, Right, Bass, Click).
OPTIONAL Footswitch 6 or 13, Volume Pedal, Sustain pedal,Midi Pedalboard, Start/Stop Pedal, HD, SSD, HArd Case, Bag.

POWER SUPPLY External 15V-4A.
AMPLIFIER 2×20 watts. 2 x Midrange speakers +2 x Tweeters. Speaker On/Off.
DIMENSIONS 111x14x40cm. (43’7×5’6×15’7 inches)
WEIGHT 19 Kg.
