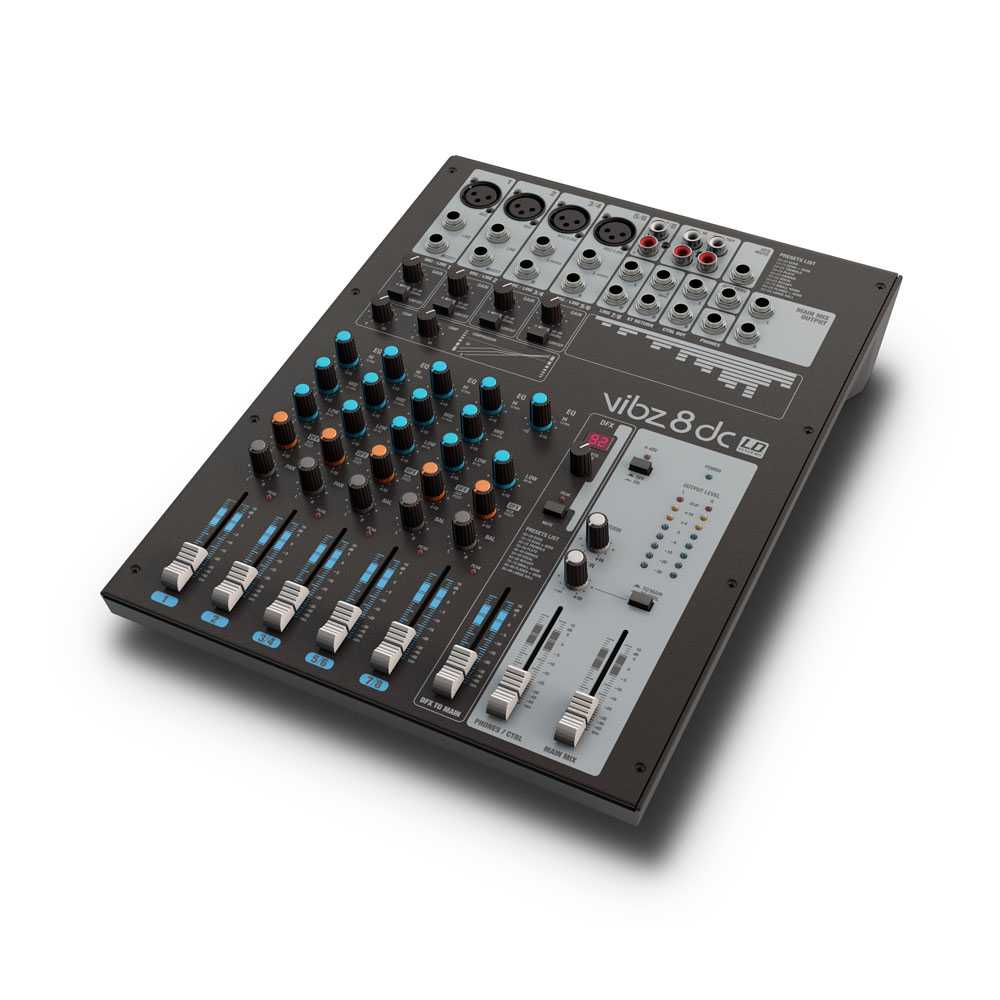

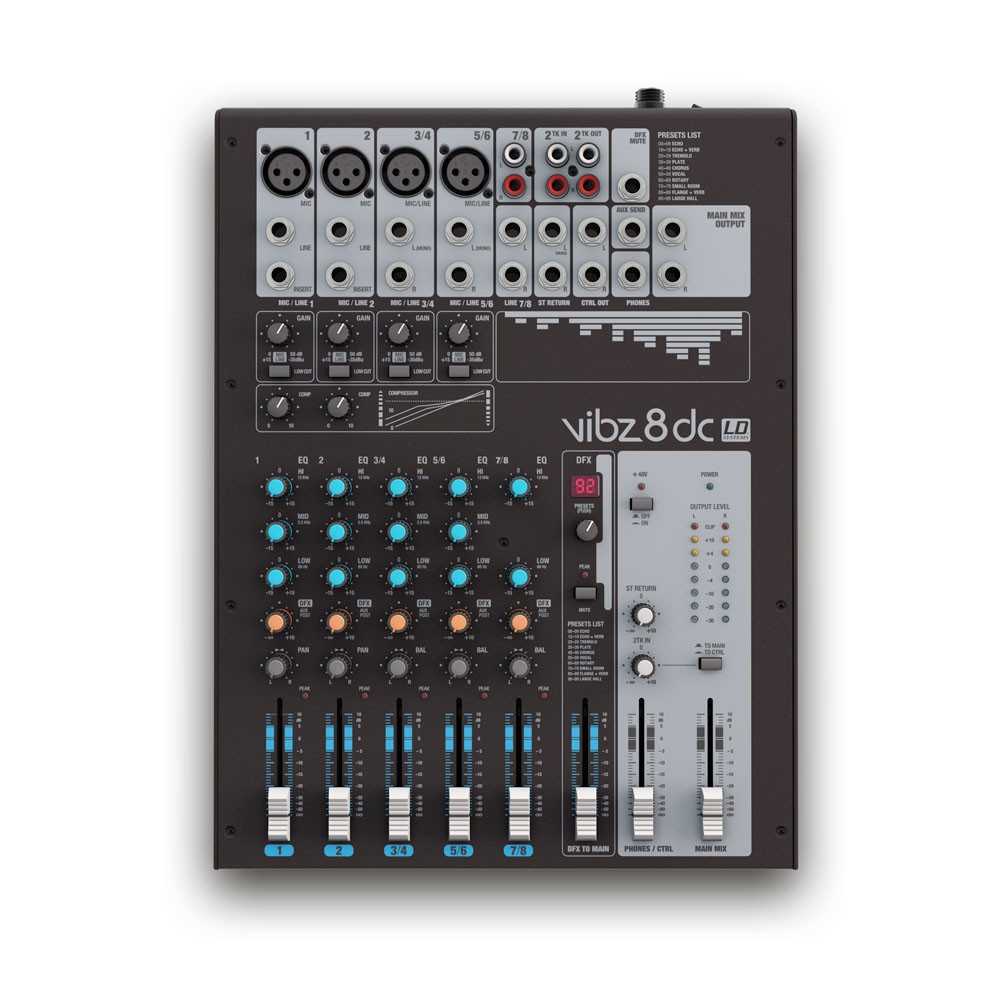

Four balanced microphone inputs with high-quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 into a flexible sound control unit.

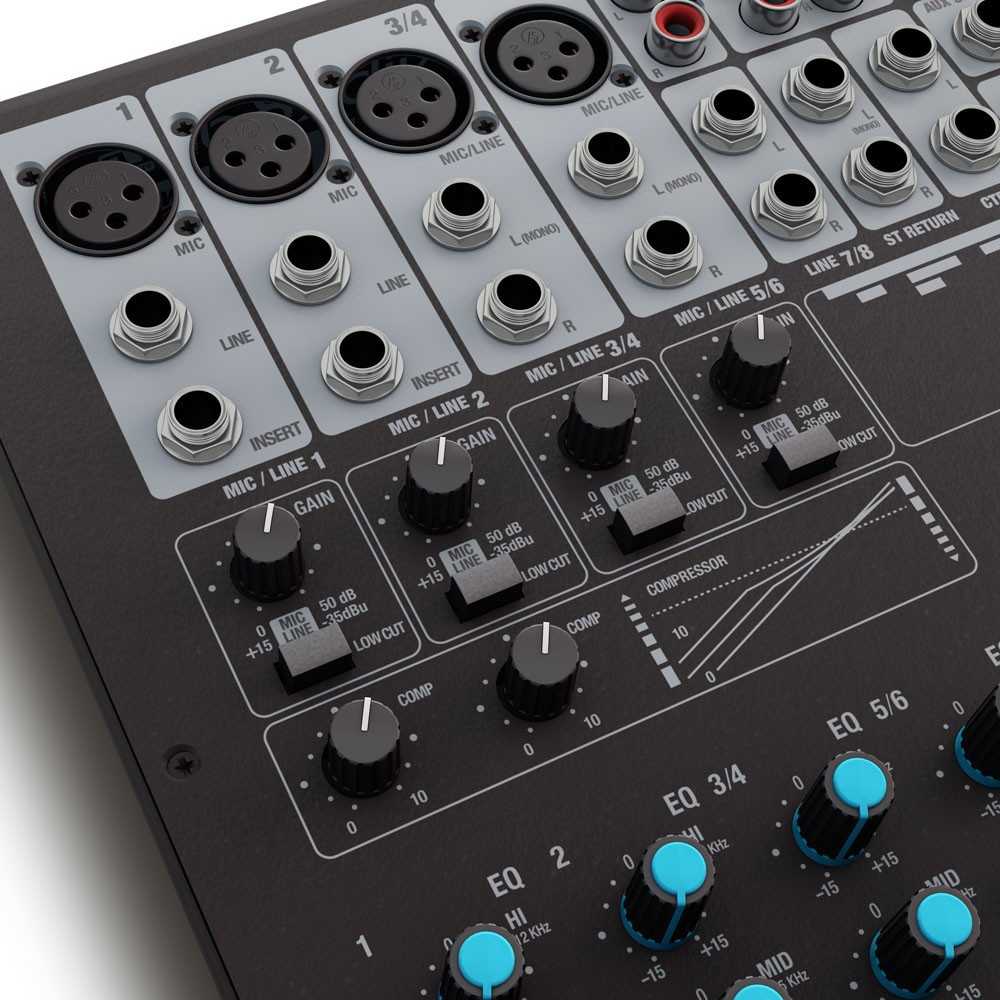

The microphone channels are switchable to line level and are equipped with high-quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 has very precise 3-band EQs with practical selectable mids.
The master section of the mixer features an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

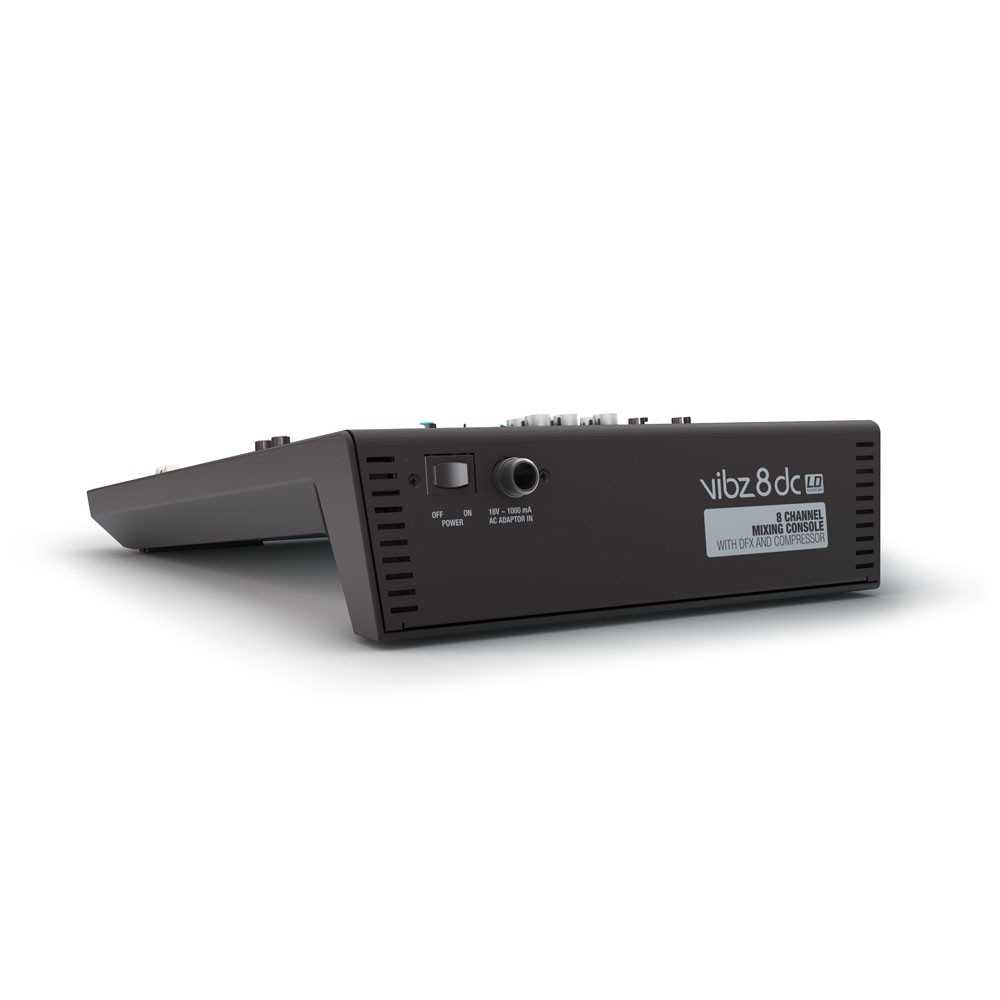

It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 on microphone stands are available as accessories.
| Product type | Mixers |
| Type | Live |
| Channels | 8 |
| Mono Mic and Line Input Channels | 4 |
| Mono Mic input connectors | 6.3 mm TRS, XLR |
| Channel Inserts | 2 |
| Channel Insert Connectors | 6.3 mm TRS |
| Mono Mic Input Type | electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4k Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21k Ohm(s) |
| Mono Line Input S/N Ratio | 113 dB |
| Mono Channel Equalizer High | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Mid | +/- 15 dB @ 2500 Hz |
| Mono Channel Equalizer Low | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor (channel 1+2), Gain, Low Cut (75 Hz), pan |
| Phantom power | 48 V DC switchable |
| Stereo Line Input Channels | 3 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Type | unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 3,7k Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer mids | +/- 15 dB @ 2500 Hz |
| Stereo channel equalizer bass | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Channel Volume, Gain, Low Cut |
| AUX / Effects Send Channels | 1 |
| AUX / Effects Send Connectors | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels | 1 x stereo |
| Stereo AUX Return Connectors | 2 x 6.3 mm TRS |
| Stereo Tape Out Channel | 1 x stereo |
| Stereo Tape Out Connectors | 2 x RCA (Cinch) |
| Stereo Tape In Channel | 1 x stereo |
| Stereo Tape In Connenctors | 2 x RCA (Cinch) |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 6.3 mm TRS |
| Unbalanced Stereo Main Out Impedance | 120 Ohm(s) |
| Max. Unbalanced Stereo Main Out Level | 20 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | Yes, 24-bit AD/DA Resolution |
| Number of Presets | 100 |
| Footswitch Connector DFX Mute | 6.3 mm TRS |
| Main section controls | DFX Mute Schalter, DFX Presets, DFX To Main Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume |
| Indicators | 8-segment Level Meter, Channel Peak, DFX Peak / Mute, Phantom Power, Power |
| Operating voltage | 18 V AC - 1 A, External PSU, 230 V |
| Width | 265 mm |
| Height | 78 mm |
| Depth | 352 mm |
| Weight | 2,3 kg |
