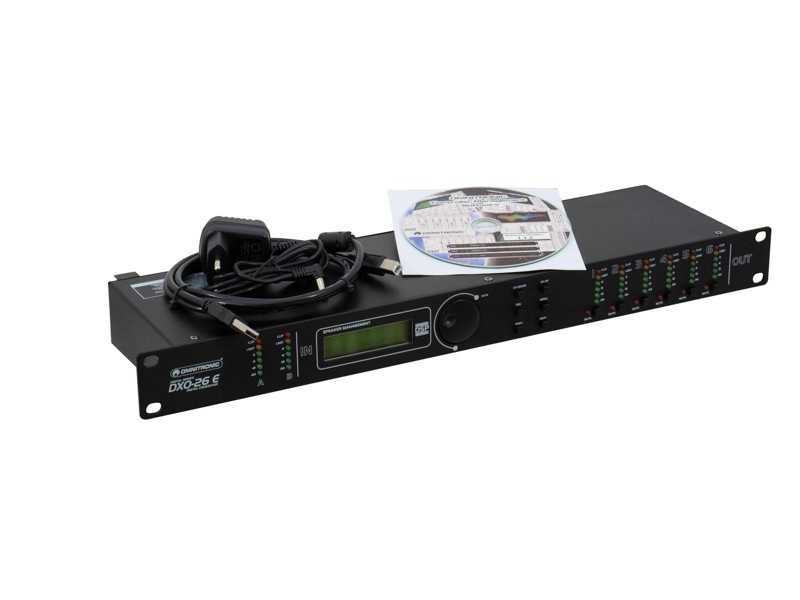

Omnitronic DXO-26E, digitální výhybka

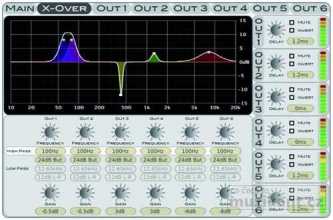

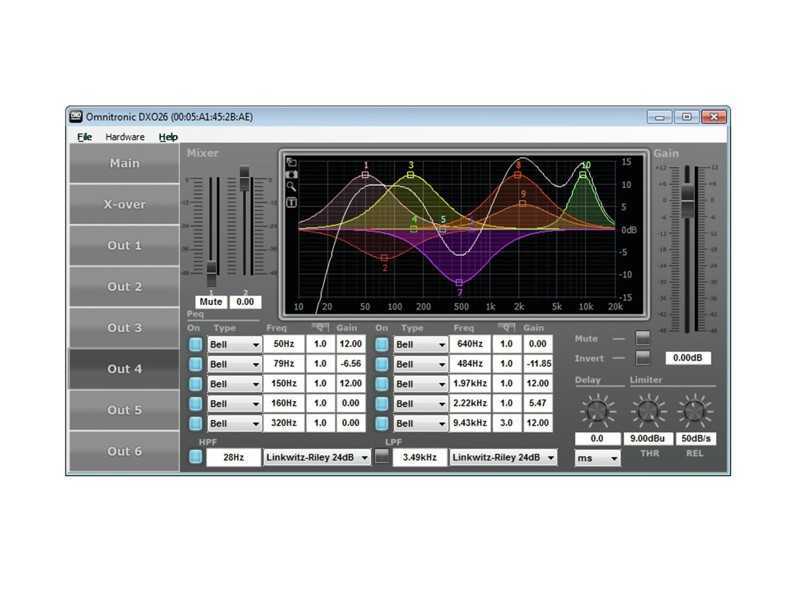

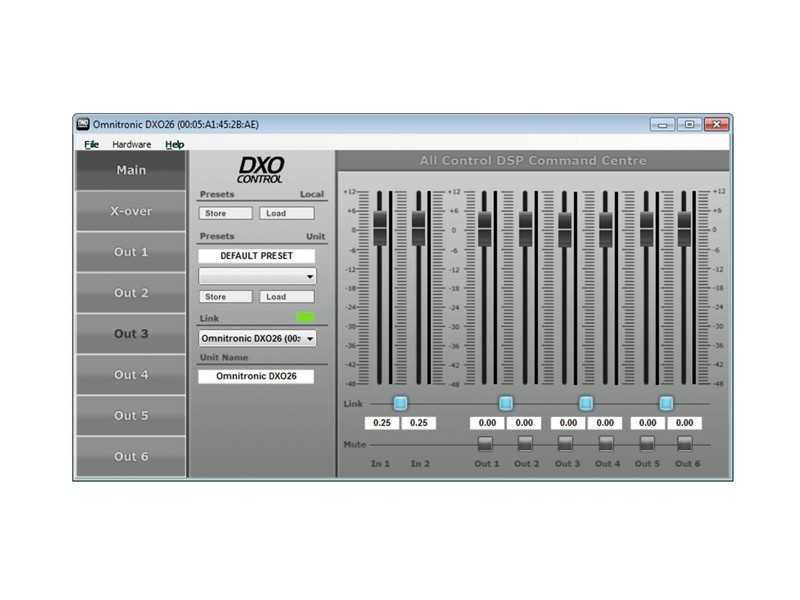

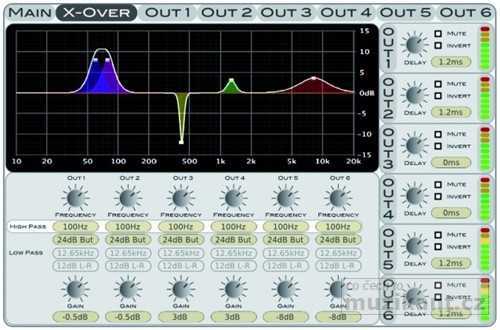

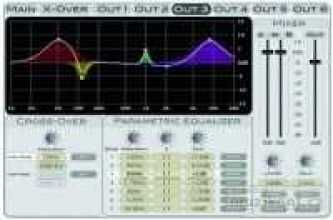

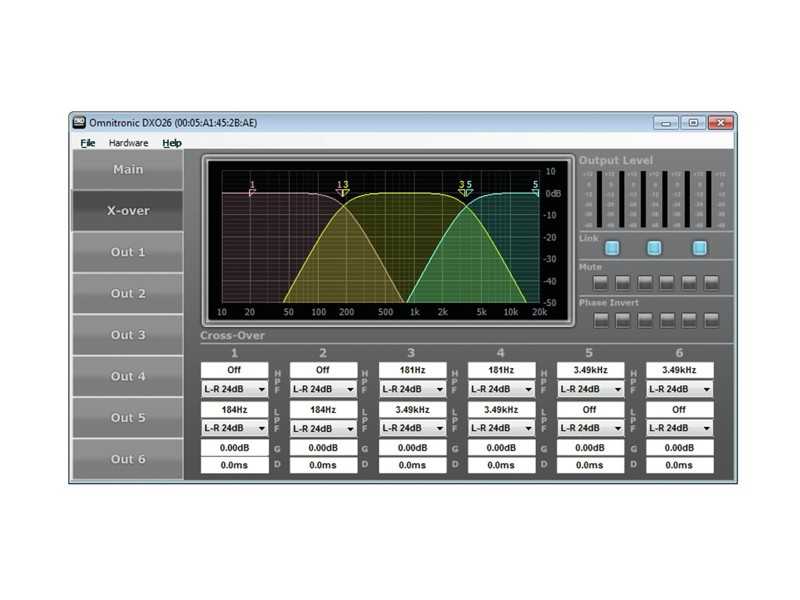

2 analog inputs and 6 analog outputs (servo-balanced XLR connectors). Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 48 dB/octave split up the audio signal into different frequency bands. Incl. software editor for remote control via PC through USB interface: store, transfer, and manage your presets. Up to 30 user presets storable via PC software. 5 languages selectable (German, English, French, Spain, Dutch) . Alphanumeric LCD screen with 2 lines of 16 characters each . Input sensitivity digitally adjustable. All inputs and outputs with 4-digit LED level meter as well as clip, limit and mute indicator. Phase invert switch and mute switch per output. 5-band parametric EQ per output. Up to 7 ms signal delay adjustable for the outputs . Delay displayed in milliseconds, meters, feet and frame/second. Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system. Lock function for protecting the program settings. Flexible routing configurations for all standard mono and stereo output operating modes. Screw connector for external control unit. Rack installation, 1 U.: Power supply: 230 V AC, 50 Hz ~
Inputs: 2 x XLR, active, balanced with automatic correction for unbalanced loading
Maximum output level: +22 dBu
Input impedance: 10 kohms
Outputs: 6 x XLR, active, balanced
