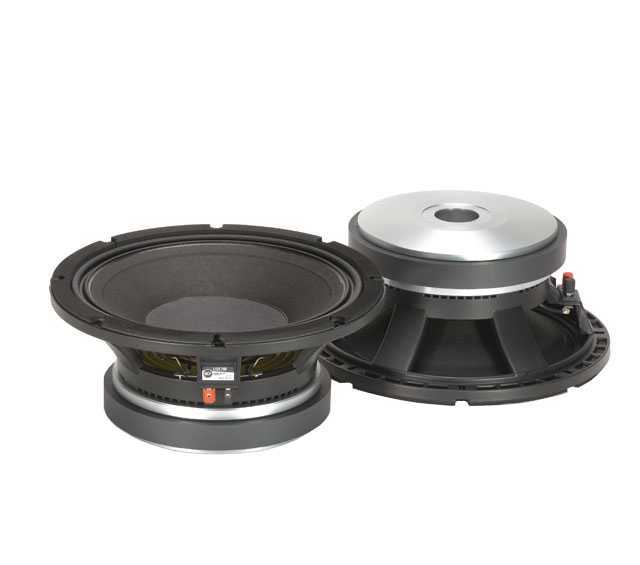

RCF L12L750 8/ohm

Reproduktor RCF 12", 350W, 101dB, 60-2000Hz, X-max 3,5mm, hmotnost 11,5kg

Very high efficiency and extended linearity are special features of this mid-bass transducer.
Very efficient heat dissipation is ensured by a radiator that is part of the basket design.
The aluminum voice coil offer a properly aligned Q factor and a very high sensitivity.
A specially designed Shallow Triple-roll surround guarantee a very low midrange distortion.
Fiberglass former voice coil, polycotton suspensions and treated cone provide the very high power handling.

Features:

• 4-inch, fiberglass former, edgewound aluminum voice coil
• 700W continuous program power handling
• 101 dB Sensitivity
• 60 Hz – 2 kHz Frequency range
• Shaped Shallow Triple-roll damped surround
• Inverted dust cap

General Specifications:

• Nominal Diameter: 300 / 12 mm/inch
• Rated Impedance: 8 ohm
• Program Power: 700 W AES
• Power handling capacity: 350 W
• AES Sensitivity: 101 dB
• Frequency Range: 60 Hz ÷ 2000 Hz
• Effective Piston Diameter: 260 / 10.2 mm/inch
• Max Excursion Before Damage (peak to peak): 40 / 1.6 mm/inch
• Minimum Impedance: 7.2 ohm
• Voice Coil Diameter: 100 / 4 mm/inch
• Voice Coil Material: Aluminum
• Voice Coil Winding Depth: 12 / 0.5 mm/inch
• Number of layers: 1
• Kind of layer: outside
• Top Plate Thickness: 10 / 0.4 mm/inch
• Cone Material: No pressed pulp
• Cone Design: Curved
• Surround Material: Polycotton
• Surround Design: Triple roll

Thiele/Small Parameters:

• Resonance frequency: 62 Hz
• DC resistance: 5.2ohm
• Mechanical factor: 4.1
• Electrical factor: 0.29
• Total factor: 0.27
• BL Factor: 18.8 T · m
• Effective Moving Mass: 50 g
• Equivalent Cas air load: 52 liters
• Effettive piston area: 0.053 m2
• Max. linear excursion (mathematical): 3.5 mm
• Voice - coil inductance @ 1kHz: 1.25 mH
• Half-space efficiency: 4.12%

Mounting information:

• Overall Diameter: 320 / 12.6 mm/inch
• Bolt Circle Diameter: 296-304 / 11.7-12 mm/inch
• Bolt Hole Diameter: 7 / 0.3 mm/inch
• Front Mount Baffle Cut-out: 286 / 11.3 mm/inch
• Rear Mount Baffle Cut-out: 284 / 11.2 mm/inch
• Depth: 146 / 5.7 mm/inch
• Volume occupied by the driver: 2.9 / 0.10 liters/ft3
• Net Weight: 11.5 / 25.3 kg/lbs

Shipping information:

• Shipping weight: 12 / 26.4 kg/lbs
