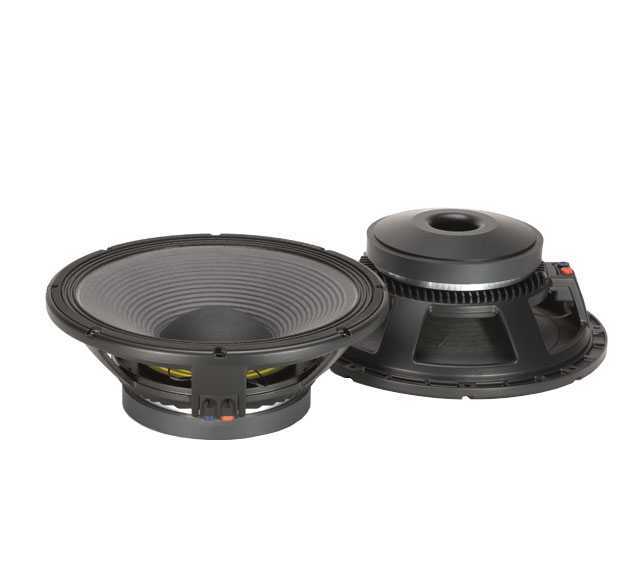

RCF MB15H401 8/ohm

Reproduktor RCF 15", 700W, 100dB, 40-2000Hz, X-max 7,5mm, hmotnost 12,2kg

The MB15H401 is a 15-inch woofer with linear frequency response cheracteristics and very high efficiency.
The MB15H401 uses a fibre loaded exponential cone assembly along with a high excursion triple roll, constant geometry surround.
The fiberglass former, inside / outside aluminum voice coil provides a very good power handling maintaining light moving mass and proper Q for bass alignment.
Demodulation ring for fastest time response and lowest distortion.

Features:

• 4-inch, fiberglass inside/outside aluminum voice coil
• 1400W continuous program power handling
• 100 dB Sensitivity
• 40 Hz – 2 kHz Frequency range
• Dual spider design with silicon based dampening control
• Triple-roll surround and corrugated straight cone geometry
• Aluminum demodulation ring

General Specifications:

• Nominal Diameter: 380 / 15 mm/inch
• Rated Impedance: 8 ohm
• Program Power: 1400 W AES
• Power handling capacity: 700 W AES
• Sensitivity: 100 dB
• Frequency Range: 40 Hz ÷ 2000 Hz
• Effective Piston Diameter: 340 / 13.4 mm/inch
• Max Excursion Before Damage (peak to peak): 50 / 2.0 mm/inch
• Minimum Impedance: 7.0 ohm
• Voice Coil Diameter: 100 / 4 mm/inch
• Voice Coil Material: Aluminum
• Voice Coil Winding Depth: 21 / 0.8 mm/inch
• Number of layers: 2
• Kind of layer: inside / outside
• Top Plate Thickness: 12 / 0.5 mm/inch
• Cone Material: No pressed pulp
• Cone Design: Curved
• Surround Material: Polycotton
• Surround Design: Triple roll

Thiele/Small Parameters:

• Resonance frequency: 44 Hz
• DC resistance: 5.4ohm
• Mechanical factor: 4.8
• Electrical factor: 0.32
• Total factor: 0.30
• BL Factor: 22.1 T · m
• Effective Moving Mass: 107 g
• Equivalent Cas air load: 121 liters
• Effettive piston area: 0.091 m2
• Max. linear excursion (mathematical): 7.5 mm
• Voice - coil inductance @ 1kHz: 1.9 mH
• Half-space efficiency: 3.11%

Mounting information:

• Overall Diameter: 393 / 15.5 mm/inch
• Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
• Bolt Hole Diameter: 6.5 / 0.3 mm/inch
• Front Mount Baffle Cut-out: 352 / 13.9 mm/inch
• Rear Mount Baffle Cut-out: 360 / 14.2 mm/inch
• Depth: 158 / 6.2 mm/inch
• Volume occupied by the driver: 4.3 / 0.15 liters/ft3
• Net Weight: 12.2 / 26.8 kg/lbs

Shipping information:

• Shipping weight: 12.8 / 28.4 kg/lbs
