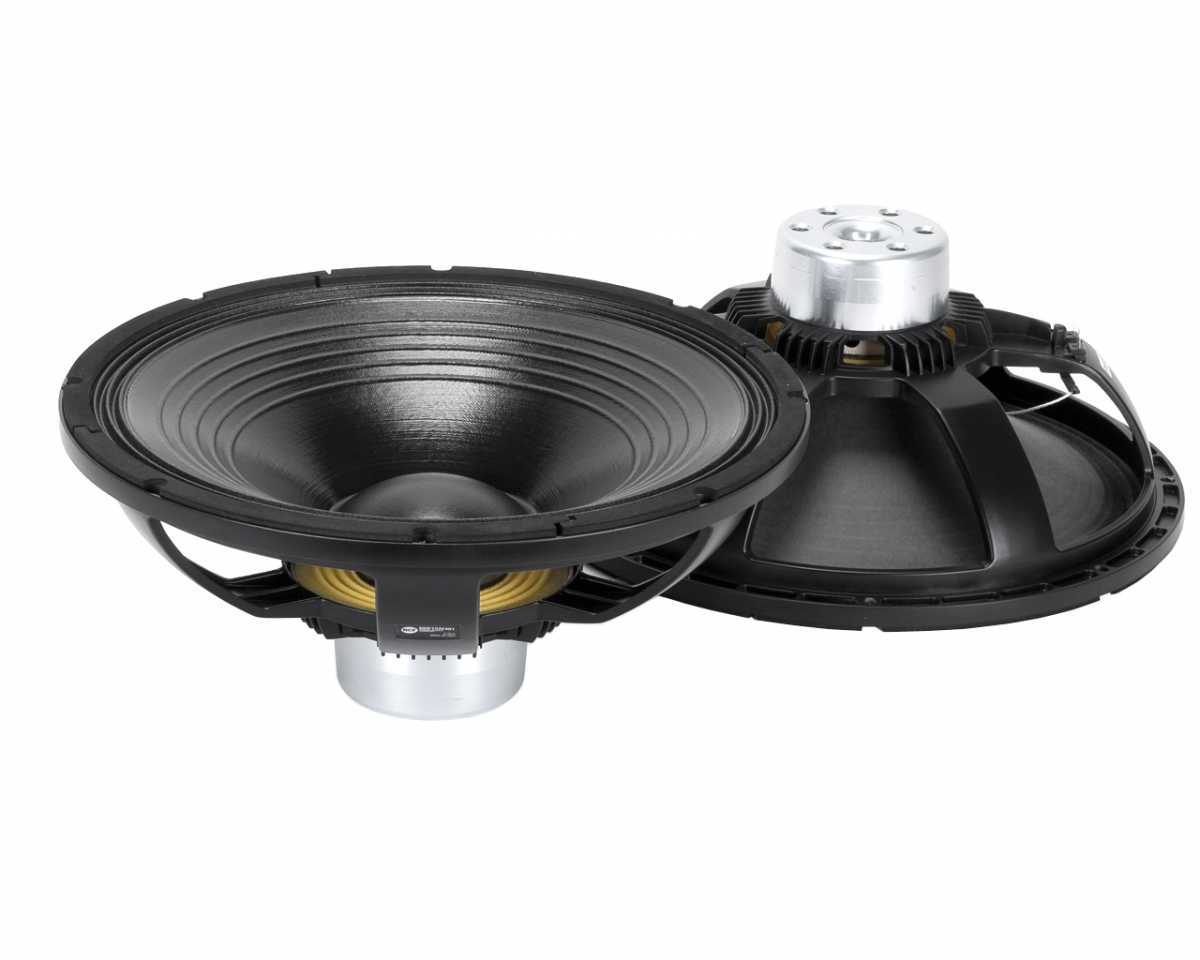

RCF MB15N301 8/ohm

Reproduktor 15", 500W, 99dB, 40-3500Hz, X-max 6mm, hmotnost 3,7kg

The MB15N301 is a neodymium, high efficiency, 15” mid-bass. High sensitivity, excellent linearity and very high power handling capabilities. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.

Features:

• 3.0-inch, fibreglass inside/outside copper voice coil
• 1000 Watt continuous program power handling
• 99 dB Sensitivity
• 40Hz –3.5KHz Frequency range
• Dual-forced air ventilation for minimum power compression
• Triple-roll surround and exponential cone geometry

General Specifications:

• Nominal Diameter: 380 / 15 mm/inch
• Rated Impedance: 8 ohm
• Program Power: 1000 W AES
• Power handling capacity: 500 W AES
• Sensitivity: 99 dB
• Frequency Range: 40 Hz ÷ 3500 Hz
• Effective Piston Diameter: 330 / 13.0 mm/inch
• Max Excursion Before Damage (peak to peak): 40 / 1.57 mm/inch
• Minimum Impedance: 6.8 ohm
• Voice Coil Diameter: 76 / 3.0 mm/inch
• Voice Coil Material: Aluminium
• Voice Coil Winding Depth: 17 / 0.76 mm/inch
• Number of layers: 2
• Kind of layer: inside / outside
• Top Plate Thickness: 10 / 0.39 mm/inch
• Cone Material: No pressed pulp
• Cone Design: Curved
• Surround Material: Polycotton
• Surround Design: Triple roll

Thiele/Small Parameters:

• Resonance frequency: 48 Hz
• DC resistance: 5.8ohm
• Mechanical factor: 4.6
• Electrical factor: 0.39
• Total factor: 0.37
• BL Factor: 19.2 T · m
• Effective Moving Mass: 90 g
• Equivalent Cas air load: 134 liters
• Effettive piston area: 0.086 m2
• Max. linear excursion (mathematical): 6.0 mm
• Voice - coil inductance @ 1kHz: 0.9 mH
• Half-space efficiency: 3.70%

Mounting information:

• Overall Diameter: 388 / 15.3 mm/inch
• Bolt Circle Diameter: 369-373.5 / 14.5-14.7 mm/inch
• Bolt Hole Diameter: 5.5 / 0.22 mm/inch
• Front Mount Baffle Cut-out: 355 / 13.98 mm/inch
• Rear Mount Baffle Cut-out: 358 / 14.09 mm/inch
• Depth: 152 / 5.98 mm/inch
• Volume occupied by the driver: 3.0 / 0.11 liters/ft3
• Net Weight: 3.7 / 8.16 kg/lbs

Shipping information:

• Shipping weight: 4.7 / 10.36 kg/lbs
