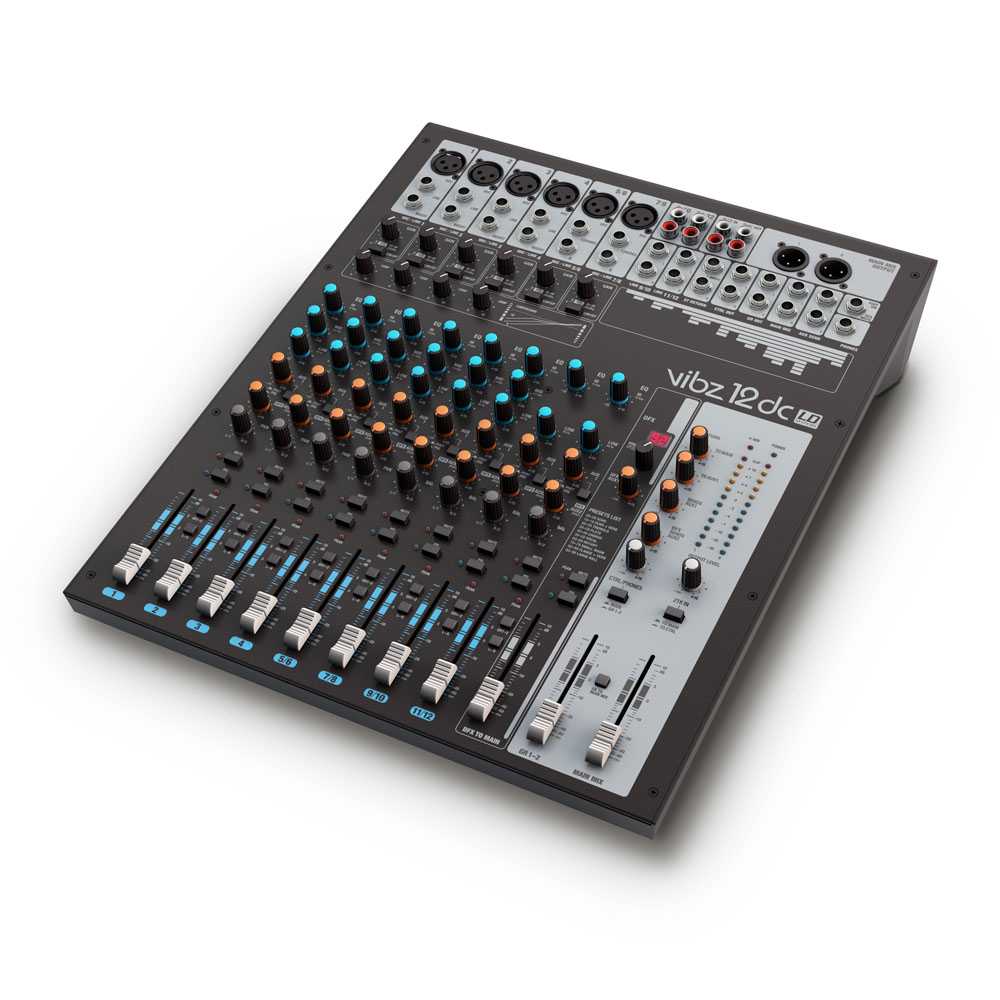

VIBZ 12 DC

12 Channel Mixing Console with DFX and Compressor

Odešleme do 7 dnů
Počet ks:
30 dní na vrácení zboží
Záruka: 0 roky
Kalkulačka splátek
Pojištění nástroje
Více informací: 800 888 448

The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.

Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.

With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.

  • 12-channel mixer with 6 microphone channels
  • 4 stereo line inputs
  • Effective 3-band EQ
  • 2 stereo channels with 2-band EQ
  • Sliding adjustable compressor
  • Digital Effects Section with 100 Presets
  • Master, Monitor, Groups and headphone outputs
  • Built in power supply
  • Product typeMixers
    TypeLive
    Channels12

    Mono Channels:

    Mono Mic and Line Input Channels4
    Mono Mic input connectors6.3 mm TRS, XLR
    Mono Mic Input Typeelectronically balanced
    Mono Mic Input Frequency Range10 - 45000 Hz
    Amplification Range mono Mic Input0 - 50 dB
    Mono Mic Input Input THD-N0.0058%
    Mono Mic Input Impedance4k Ohm(s)
    Mono Mic Input S/N Ratio113 dB
    Mono Line Input Typeelectronically balanced
    Mono Line Input Frequency Range10 - 45000 Hz
    Amplification Range mono Line Input0 - 50 dB
    Mono Line Input Input THD-N0.0045 %
    Mono Line Input Impedance21k Ohm(s)
    Mono Line Input S/N Ratio116 dB
    Mono Channel Equalizer High+/- 15 dB @ 12000 Hz
    Mono Channel Equalizer Mid+/- 15 dB @ 2,500 Hz
    Mono Channel Equalizer Low+/- 15 dB @ 80 Hz
    Controls Mono Mic and Line Input Channels3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Compressor, DFX/AUX 1, Gain, Low Cut (75 Hz), PFL
    Phantom power48 V DC switchable

    Stereo Channels:

    Stereo Line Input Channels4
    Stereo Line Input Connectors6.3 mm TRS, RCA
    Stereo Line Input Typeelectronically balanced, unbalanced
    Stereo Line Input Frequency Range10 - 45000 Hz
    Amplification Range stereo Line Input0 - 50 dB
    Stereo Line Input Input THD-N0.0045 %
    Stereo Line Input Impedance3,7k Ohm(s)
    Stereo Line Input S/N Ratio116 dB
    Stereo channel equalizer treble+/- 15 dB @ 12000 Hz
    Stereo channel equalizer mids+/- 15 dB @ 2500 Hz
    Stereo channel equalizer bass+/- 15 dB @ 80 Hz
    Controls Stereo Line Input Channels2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, Gain, Low Cut

    Main Section:

    AUX / Effects Send Channels2
    AUX / Effects Send Connectors6.3 mm TRS
    Stereo AUX Return Channels1 x stereo
    Stereo AUX Return Connectors6.3 mm TRS
    Stereo Tape Out Channel1 x stereo
    Stereo Tape Out Connectors2 x RCA (Cinch)
    Stereo Tape In Channel1 x stereo
    Stereo Tape In Connenctors2 x RCA (Cinch)
    Balanced Stereo Main Out1
    Balanced Stereo Main Out ConnectorsXLR
    Balanced Stereo Main Out Impedance120 Ohm(s)
    Max. Balanced Stereo Main Out Level23 dBu
    Stereo Control Room Out1
    Stereo Control Room Out Connectors6.3 mm TRS
    Headphones ouput1
    Headphones outputs6.3 mm TRS
    Digital Effects ProcessorYes, 24-bit AD/DA Resolution
    Number of Presets100
    Footswitch Connector DFX Mute6.3 mm TRS
    Main section controls2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones
    IndicatorsDFX Peak, DFX TO MAIN, PFL, Phantom Power, Power
    Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
    Width350 mm
    Height98 mm
    Depth440 mm
    Weight4,3 kg
    Výroba :CN
