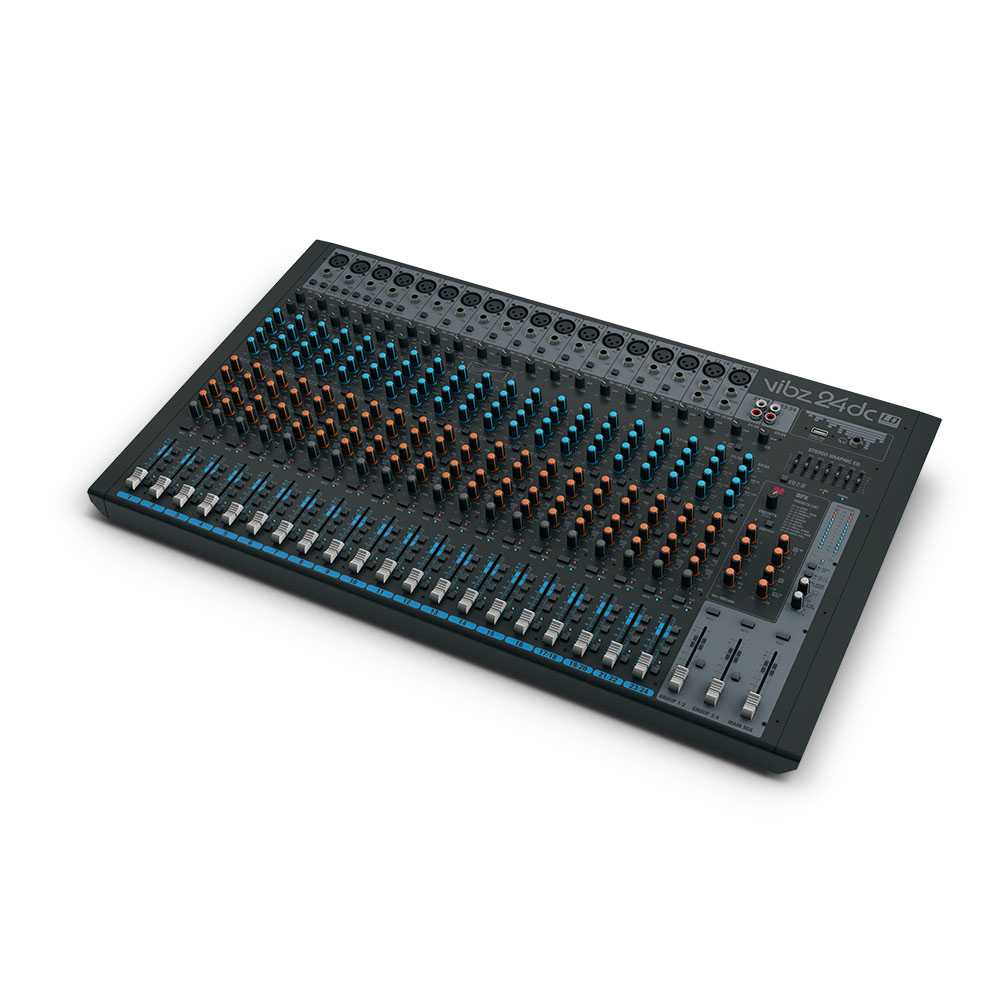

The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.
All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels' XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.
The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.
| Product type | Mixers |
| Type | Home-Recording, Live |
| Channels | 24 |
| Mono Mic and Line Input Channels | 16 |
| Mono Mic input connectors | 6.3 mm TRS, XLR |
| Mono Mic Input Type | electronically balanced |
| Mono Mic Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Mic Input | 0 - 50 dB |
| Mono Mic Input Input THD-N | 0.0058% |
| Mono Mic Input Impedance | 4000 Ohm(s) |
| Mono Mic Input S/N Ratio | 113 dB |
| Mono Line Input Type | electronically balanced |
| Mono Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range mono Line Input | 0 - 50 dB |
| Mono Line Input Input THD-N | 0.0045 % |
| Mono Line Input Impedance | 21000 Ohm(s) |
| Mono Line Input S/N Ratio | 116 dB |
| Mono Channel Equalizer High | +/-15 dB @ 12.000 Hz |
| Mono Channel Equalizer Mid | 200 - 8000 |
| Mono Channel Equalizer Low | +/-15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels | 3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable), AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Gain, LINE/USB -switch (Channel 21 - 24), PFL / Solo Switch |
| Phantom power | 48 V DC switchable |
| Mono Inserts | 8 |
| Mono Inserts Connectors | 6.3mm jack |
| Stereo Line Input Channels | 4 |
| Stereo Line Input Connectors | 6.3 mm TRS |
| Stereo Line Input Type | electronically balanced, unbalanced |
| Stereo Line Input Frequency Range | 10 - 45000 Hz |
| Amplification Range stereo Line Input | 0 - 50 dB |
| Stereo Line Input Input THD-N | 0.0045 % |
| Stereo Line Input Impedance | 37000 Ohm(s) |
| Stereo Line Input S/N Ratio | 116 dB |
| Stereo channel equalizer treble | +/-15 dB @ 12.000 Hz |
| Stereo channel equalizer hi-mids | +/-15 dB @ 2.500 Hz |
| Stereo channel equalizer low-mids | +/-15 dB @ 2.500 Hz |
| Stereo channel equalizer bass | +/-15 dB @ 80 Hz |
| Controls Stereo Line Input Channels | 4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 - 2 switchable Pre/Post, AUX/DFX Send 1 - 4, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch |
| AUX / Effects Send Channels | 4 |
| AUX / Effects Send Connectors | 6.3 mm TS |
| Stereo AUX Return Channels | 1 |
| Group Out | 4 |
| Group Out Connectors | 4 x 6,3mm TRS |
| Balanced Stereo Main Out | 1 |
| Balanced Stereo Main Out Connectors | XLR |
| Unbalanced stereo Main Outputs | 1 |
| Unbalanced stereo Main Output Connections | 2 x 6.3 mm TS |
| Main-Insert Inputs | 1 |
| Main-Insert Input Ports | 2 x 6.3 mm TRS asymmetrically |
| DFX Out Outputs | 1 |
| DFX Out Output Ports | 6.3 mm TRS |
| USB In/Out In-/Outputs | 1 |
| USB In/Out Ports | USB-B |
| Max. Unbalanced Stereo Main Out Level | 22 dBu |
| Stereo Control Room Out | 1 |
| Stereo Control Room Out Connectors | 2x 6.3 mm TRS |
| Headphones ouput | 1 |
| Headphones outputs | 6.3 mm TRS |
| Digital Effects Processor | Yes |
| Number of Presets | 100 |
| DMX output | 1 |
| Footswitch Connector DFX Mute | 6.3 mm TS |
| Main section controls | 7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL |
| Indicators | DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, Signal |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Width | 712 mm |
| Height | 80 mm |
| Depth | 425 mm |
| Weight | 9,442 kg |
