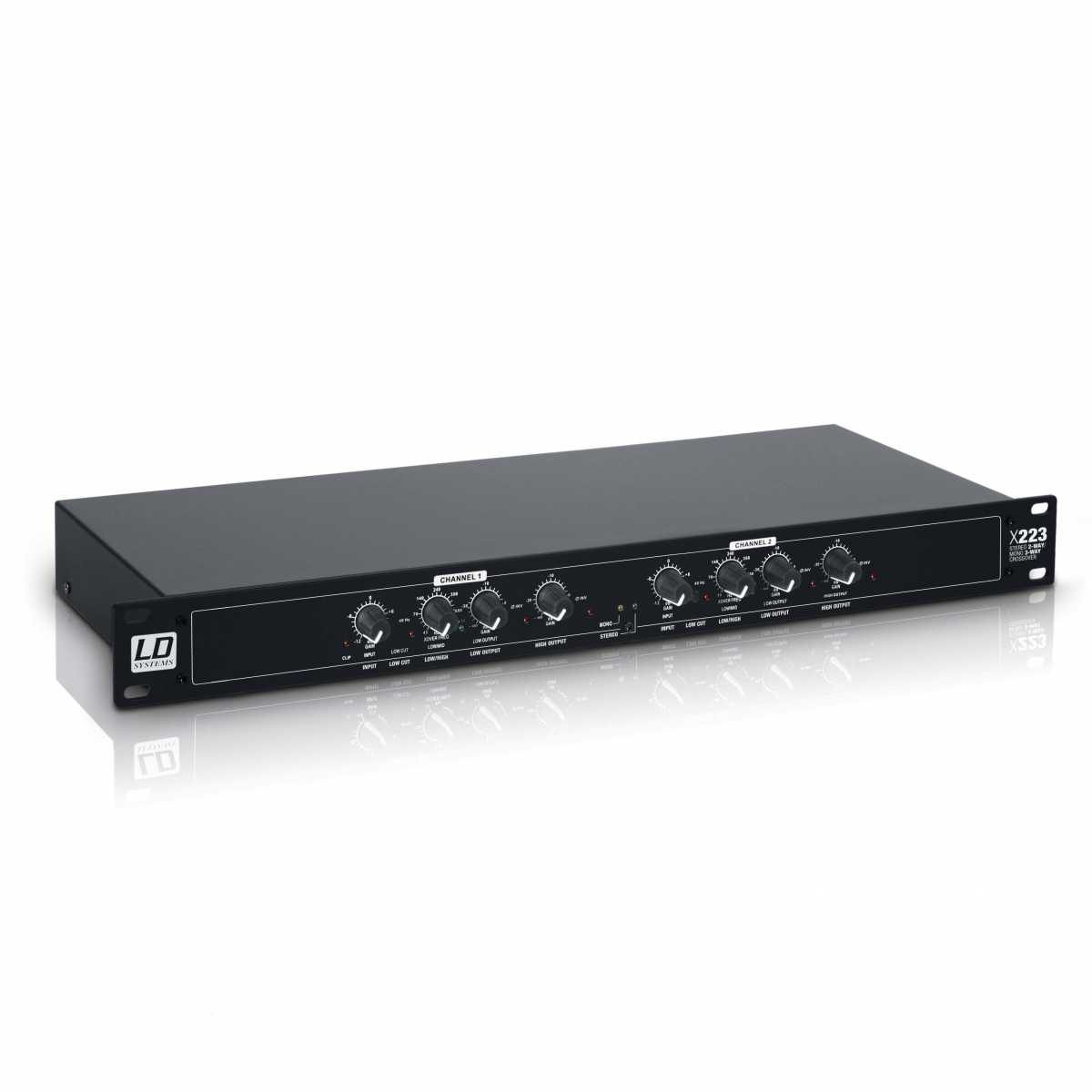

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range. It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs. With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.
| Product type | Signal Processors |
| Version | 2-way stereo/3-way mono |
| Frequency response | 20 - 20.000 Hz |
| Dynamic range | 106 dB |
| Signal-to-noise ratio | > 93 dB |
| Total Harmonic Distortion (THD) | < 0.004 % |
| Crosstalk | < - 80 (20 - 20.000 Hz) dB |
| Max. input level | +21 (balanced or unbalanced) dBu |
| Max. output level | +21 (balanced or unbalanced) dBu |
| Input impedance (kOhms) | 50000 kOhm |
| Output impedance | 200 Ohm(s) |
| Controls | 2 x crossover frequency low/high, 2 x crossover low/mid, 2 x high gain, 2 x highpass (40 Hz), 2 x input gain, 2 x low gain, 2x frequency switch x1/x10, 4 x inv switch, LF sum, Mono/stereo mode |
| Indicators | 2 x clip, 2 x crossover x 10, 2 x highpass, 4 x inv., mono, stereo |
| Line inputs | 2 |
| Line input connectors | XLR |
| Line outputs | 4 |
| Line output connectors | XLR |
| Mains connector | IEC socket |
| Operating voltage | 220 V AC - 240 V AC |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 153 mm |
| Weight | 2,6 kg |
Odkaz na stránky výrobce Ld Systems
